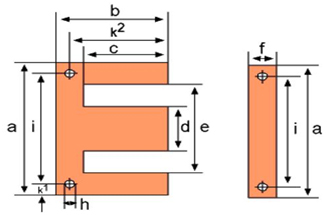

Наименование |
IEC |
a, мм |
b, мм |
c, мм |
d, мм |
e, мм |
f, мм |
h, мм |
i, мм |
k1, мм |
k2, мм |
Отверстия |
|
EI 30 |
YEI 1 - 10 |
30.0 |
20.0 |
15.0 |
10.0 |
20.0 |
5.0 |
0.0 |
0.0 |
0.00 |
0.00 |
_ |
|
EI 38 |
YEI 1 - 13 |
38.4 |
25.6 |
19.2 |
12.8 |
25.6 |
6.4 |
0.0 |
0.0 |
0.00 |
0.00 |
_ |
|
EI 42 |
YEI 1 - 14 |
42.0 |
28.0 |
21.0 |
14.0 |
28.0 |
7.0 |
3.5 |
35.0 |
3.50 |
24.50 |
4 |
|
EI 48 |
YEI 1 - 16 |
48.0 |
32.0 |
24.0 |
16.0 |
32.0 |
8.0 |
3.5 |
40.0 |
4.00 |
28.00 |
4 |
|
EI 54 |
YEI 1 - 18 |
54.0 |
36.0 |
27.0 |
18.0 |
36.0 |
9.0 |
3.5 |
45.0 |
4.50 |
31.50 |
4 |
|
EI 60 |
YEI 1 - 20 |
60.0 |
40.0 |
30.0 |
20.0 |
40.0 |
10.0 |
3.5 |
50.0 |
5.00 |
35.00 |
4 |
|
EI 66 |
YEI 1 - 22 |
66.0 |
44.0 |
33.0 |
22.0 |
44.0 |
11.0 |
4.5 |
55.0 |
5.50 |
38.50 |
4 |
|
EI 75 |
YEI 1 - 25 |
75.0 |
50.0 |
37.5 |
25.0 |
50.0 |
12.5 |
4.5 |
62.5 |
6.25 |
43.75 |
4 |
|
EI 84 |
YEI 1 - 28 |
84.0 |
56.0 |
42.0 |
28.0 |
56.0 |
14.0 |
4.5 |
70.0 |
7.00 |
49.00 |
4 |
|
EI 96 |
YEI 1 - 32 |
96.0 |
64.0 |
48.0 |
32.0 |
64.0 |
16.0 |
5.5 |
80.0 |
8.00 |
56.00 |
4 |
|
EI 108 |
YEI 1 - 36 |
108.0 |
72.0 |
54.0 |
36.0 |
72.0 |
18.0 |
5.5 |
90.0 |
9.00 |
63.00 |
4 |
|
EI 120 |
YEI 1 - 40 |
120.0 |
80.0 |
60.0 |
40.0 |
80.0 |
20.0 |
7.0 |
100.0 |
10.00 |
70.00 |
4 |
|
EI 150 |
YEI 1 - 50 |
150.0 |
100.0 |
75.0 |
50.0 |
100.0 |
25.0 |
8.0 |
125.0 |
12.50 |
87.50 |
4 |
|
EI 174 |
YEI 1 - 58 |
174.0 |
116.0 |
87.0 |
58.0 |
116.0 |
29.0 |
10.5 |
145.0 |
14.50 |
101.50 |
4 |
|
EI 192 |
YEI 1 - 64 |
192.0 |
128.0 |
96.0 |
64.0 |
128.0 |
32.0 |
11.0 |
160.0 |
16.00 |
112.00 |
4 |
|
EI 240 |
YEI 1 - 80 |
240.0 |
160.0 |
120.0 |
80.0 |
160.0 |
40.0 |
11.5 |
200.0 |
20.00 |
140.00 |
4 |
